5 Ply Flute Lamination with servo controlled

4500000.00 - 6000000.00 INR/Set

Product Details:

  • Material Paper board and Kraft Material.
  • Computerized Yes
  • Automatic Grade Automatic
  • Control System Other
  • Heating System Other
  • Dimension(L*W*H) 12 meter long Meter (m)
  • Feature Touch Screen, Simple Control, High Performance, ECO Friendly, Low Noise
  • Supply Ability : 4 Per Month
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 4500000.00 - 6000000.00 INR/Set

Product Specifications

  • Paper board and Kraft Material.
  • Automatic
  • Touch Screen, Simple Control, High Performance, ECO Friendly, Low Noise
  • Other
  • Other
  • Yes
  • 12 meter long Meter (m)
  • ONE YEAR.

Trade Information

  • Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C), Telegraphic Transfer (T/T)
  • 4 Set Per Month
  • 30 Days
  • Asia, Middle East
  • All India

Product Description

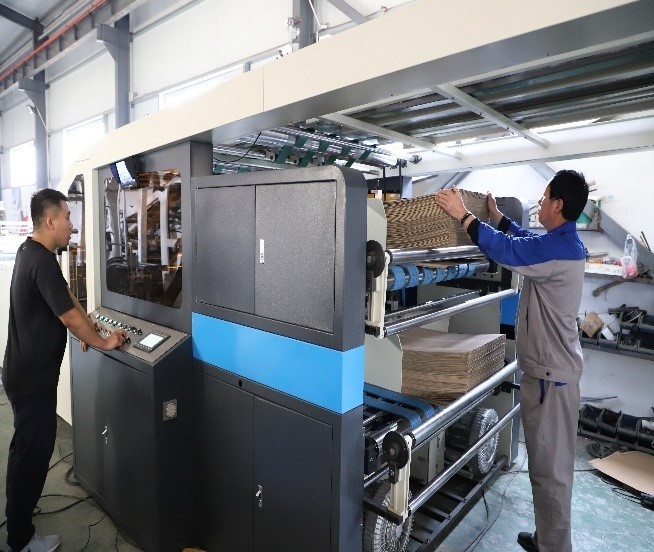

Our company offers high speed and fully automated 5 Ply Flute Lamination with servo controlled which runs on standard electrical power for the efficient functioning. It is commonly used in the large scale paper industries and mills. It is fast in operation with a maximum speed of 8000 sheets per hour with the help of 28 Horsepower electrical drive. This machine produces very less noise and can be easily controlled with a touch screen panel.



Model

RI-1450 G

RI-1650 G

Maximum paper size

1450 X 1200 mm.

1650 X 1450 mm.

Minimum paper size

400 X 400 mm

400 X 400 mm.

Minimum weight of bottom paper

150 GSM

150 GSM.

Maximum weight of bottom paper

800 GSM

800 GSM

Maximum thickness of paper

0.5-10 mm

0.5-10 mm

Minimum weight of face paper

150 GSM.

150 GSM.

Maximum weight of face paper

800 GSM.

800 GSM.

Precision of paperboard and cardboard

Accuracy ± 1.2 mm

Accuracy ± 1.2 mm

Precision of paperboard and corrugated board

Accuracy ± 1.5 mm

Accuracy ± 1.5 mm

Machine speed

8000 sheet/hour

8000 sheet/hour

Total power

28 hp

28 hp

Total length

15.5 Meter

15.5 Meter

Total weight

8800 Kg.

12800 Kg.
